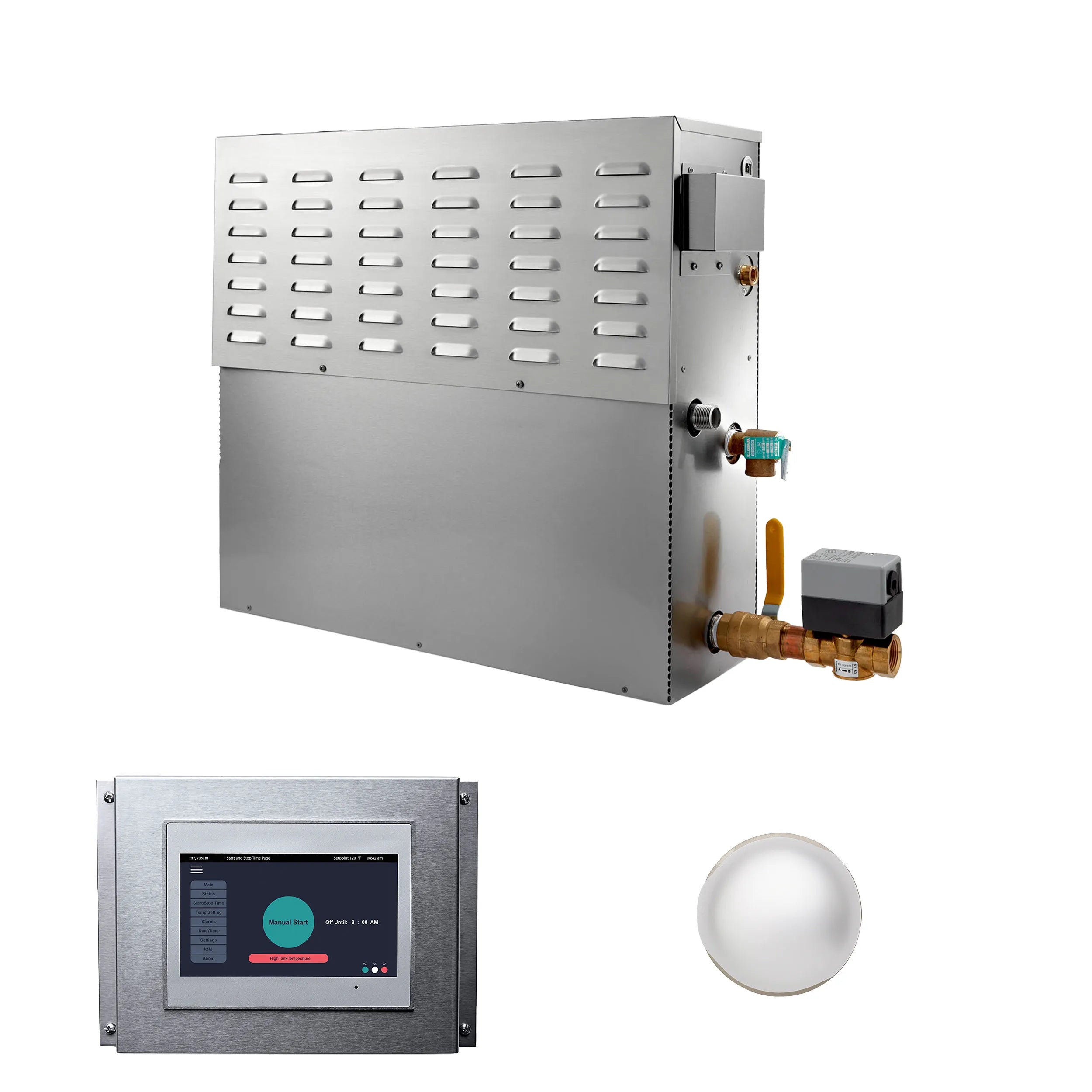

Mr. Steam Commercial Steam Generator Package 9kW (CX0360)

Key Features

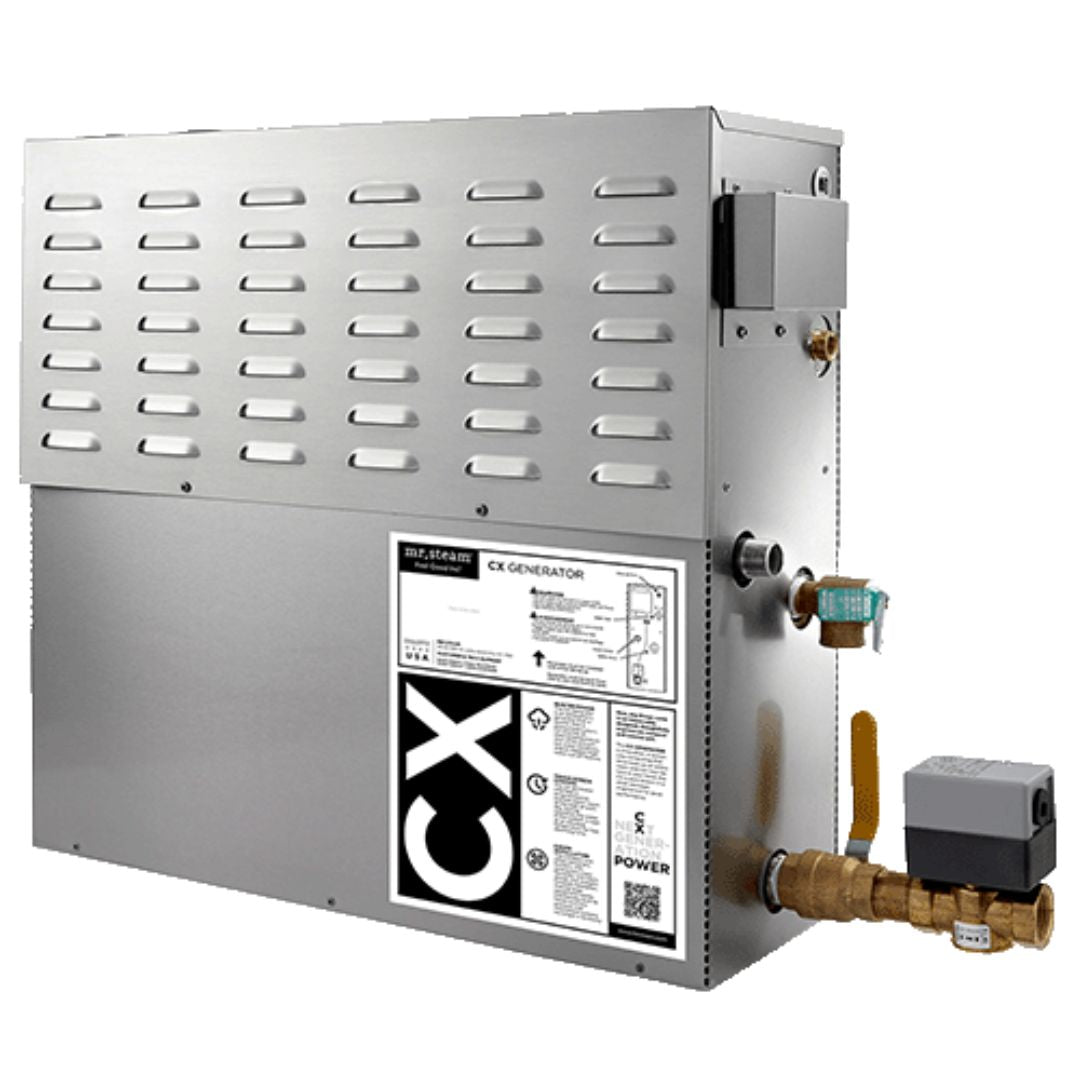

CX Generator

Industrial-grade, large diameter, serviceable heating element

Electronic water-level control system

Stainless steel jacket prolongs life

Quieter than a pressurized system

Program to preheat the steam room at the start of each day

Internal temperature shut-off to prevent low water conditions and integral high water cut-off

Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators

Compact size offers more flexibility with room design and straightforward installation

All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly

Designed for commercial applications that require continuous or near continuous use so they are available to use all day

Dimensions: 33.9"L x 7.9"W x 22"H (per generator including factory-installed autoflush system)

CX Control

7” color touch screen control with menu driven user interface

Easily set on/off time and view system status while the unit is running

Controls multiple CX Generators in series

Dimensions: 7.1"L x 1.6"W x 5.3"H

Commercial SteamHead

Complete with polycarbonate Acrylic Shield

Comes in a Polished Chrome finish

No assembly of moving parts required

Dimensions: 3.1”Diameter x 1.8”W

Condensation Pan

Protects against potential water leaks

Will trap and redirect the water to a predetermined area

Goes on a solid level surface with steam generator placed inside

Dimensions: 33"L x 1.5"W x 9"

Technical Specifications Sheet

Dimensions: Generator – 35″L x 8″W x 23″H; Shipping – 30″L x 40″W x 28″H

Weight: Net: 60 lbs, Shipping: 80 lbs

Power Output: 12kW

Plumbing Required: Steam Outlet: ¾” NPT, Steam Head: ¾” NPT, Steam Piping: ¾” NPT (not supplied), Drain Outlet: 1” NPT, Water Supply: 3/8'' NPT, Safety Valve: ¾” NPT, Only rigid copper or brass piping shall be used for plumbing the steam and drain piping
• DO NOT install any valves in the steam piping
• DO NOT plumb the steam piping with any traps or valleys between the steam generator and steam head(s)
• DO NOT plumb steam piping together in mulitunit installations, each unit shall have a dedicated steam head(s)
• Recommended water feed piping shall be copper or brass. Flexible copper tubing, PVC or PEX may be used if permissible by local codes.

Control: 7” color touch screen, up to 30 feet from the generator

Construction Material: Stainless Steel Tank

Safety Features: Internal temperature shut-off, high water cut-off, ASME Safety Valve, Acrylic Shield included to help prevent burns from
coming into contact with the steam head

Certifications: cULus

 Electronic water-level control system

Stainless steel jacket prolongs life

All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly

Specifically designed for commercial applications that require continuous or near continuous use so they are available to use all day.

 Factory installed automatic drain valve

Condensation Pan

CX Series Compared

Note:

The CX1600 (40 kW) is a duo of two CX800 (20 kW) Generators

The CX2000 (48 kW) is a duo of two CX1000 (24 kW) Generators

The CX2500 (60 kW) is a duo of two CX1250 (30 kW) Generators

The CX3000 (72 kW) is a trio of three CX1000 (24 kW) Generators

The CX5000 (1200 kW) is a quad of four CX1250 (30 kW) Generators

CX ACCESSORIES

CX AROMAFLO

By merging fragrance and steam, the AromaFlo metering pump atomizes the fragrance and creates the perfect in-steam AromaTherapy experience.

Technical Specifications Sheet

HIGH LIMIT CONTROL

High temperature limit device for use with any MrSteam commercial steam generator system to provide temperature shutoff and alarm functions.

Technical Specifications Sheet

AROMASTEAM FRAGRANCE

AromaSteam fragrance gallon. Specially formulated & packaged for use with the AromaSteam system.

Eucalyptus Safety Data Sheet     Lavender Safety Data Sheet

LED LIGHT

Recessed Light Designed To Withstand Heat & Moisture.

Technical Specifications Sheet

Mr.Steam CU SteamStop

Working in conjunction with Digital 1 or F1 operating controls, this stop switch is suitable for installation inside or outside the the steam room. Multiple CU SteamStop switches can be installed with one steam bath generator.

Technical Specifications Sheet

Mr. Steam CU Alarm

Mounting in a standard 4x4 electrical box, the surface-mounted CU Alarm is designed to work in conjunction with the Digital 1 operating control. Choose from 6 different alarm tones and 2 emergency tones.

The CU Alarm should be installed outside the steam room in a location that will alert an attendant and/or user to an over-temperature condition.

Technical Specifications Sheet

Digital Timer 30 Minutes

Technical Specifications Sheet

30-Minute Mechanical Timer

Recommended for low volume use steam rooms.

Technical Specifications Sheet

Exploring the Benefits of Steam Rooms

Steam rooms have become a staple in wellness routines around the world. Ever wondered why they're gaining so much traction? Imagine stepping into a cloud of warmth, feeling your worries melt away. Whether it's for relaxation, health improvements, or simply indulging in some "me" time, steam rooms offer a myriad of benefits. Let's dive into why these heated havens are a go-to for many wellness enthusiasts.

The Basics of Steam Rooms

So, what exactly is a steam room? It's a small, enclosed space with high humidity, which typically reaches temperatures of around 110°F to 114°F. Unlike saunas, which provide dry heat, steam rooms are all about moisture. Imagine yourself sitting in a rainforest sauna. That's the steam room experience in a nutshell. This humid environment can offer unique benefits, setting it apart from its dry counterpart.

Historical Background

Did you know steam rooms trace back to ancient times? The Romans and Greeks were among the first to appreciate the therapeutic aspects of steam baths. Fast forward to today, and the concept has been modernized but still delivers that age-old comfort and health boost. Over centuries, steam rooms have evolved from basic stone structures to sophisticated, tech-friendly enclosures.

Physical Health Benefits

Respiratory Aid: Ever noticed how easier it is to breathe in warm, moist air? Steam rooms help clear congestion and improve respiratory function. They can be especially helpful for those with asthma or allergies, acting like a natural decongestant.

Skin Improvement: Dreaming of glowing skin? The steam helps open pores, which can lead to clearer skin. It also moisturizes, leaving your skin feeling supple and rejuvenated.

Stress Reduction: In today's fast-paced world, who doesn't need a break? The soothing environment of a steam room helps lower cortisol levels, making you feel more at ease.

Enhanced Relaxation: Picture yourself unwinding completely. The serene atmosphere of a steam room promotes relaxation and boosts endorphin levels, the body's natural "feel-good" chemicals.

Muscle Recovery: Post-workout soreness can be a pain—literally. Steam rooms help to increase blood flow, reducing muscle stiffness and aiding recovery.

Detoxification: Sweating it out in a steam room can help the body expel toxins, contributing to overall health improvement.

Potential Drawbacks

But wait, are there any downsides to consider? For individuals with heart conditions or certain medical issues, steam rooms aren't always advisable. Overusing them can lead to dehydration or overheating, so it's important to use them wisely. Understanding your body's limits is key to enjoying the benefits safely.

Implementation Strategies

If you're new to steam rooms, start with short sessions. Gradually increase time as you become more accustomed. Stay hydrated by drinking water before and after your session. These steps ensure you'll have a safe and enjoyable experience without any adverse effects.

Future Trends

Looking ahead, the wellness industry is ever-evolving. Innovations in steam room technology, like customizable heat levels and integrated aromatherapy, are making the experience even better. As people continue to prioritize health and relaxation, steam rooms will likely maintain their popularity in wellness culture.

Conclusion

In conclusion, steam rooms offer a balance of physical and mental health benefits, making them a valuable addition to any wellness regimen. Whether you're looking to improve your skin or simply unwind, steam rooms have something to offer. Just remember to use them wisely and consider any potential health concerns.

FAQs

Can steam rooms help with weight loss? Steam rooms can aid in temporary water weight loss due to sweating, but they aren't a substitute for diet and exercise.

How long should I stay in a steam room? Beginners should start with 10-15 minutes and can gradually increase as comfortable. Always listen to your body.

Is it safe to use a steam room daily? While steam rooms can be used regularly, daily use isn't necessary and might not be suitable for everyone. Consult with a healthcare professional if unsure.

Do steam rooms help with detoxification? Yes, steam rooms can aid in the body's natural detoxification process by promoting sweating.

Can children use steam rooms? Children are generally advised against using steam rooms due to the high temperatures, which can be overwhelming for young bodies. Always consult with a pediatrician first.

Installation, Operation and Maintenance Manual

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

 The driver is responsible for curbside delivery “only” and will lower the items to ground level.

 Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

 Our goal is to ensure your project success.

Commercial Warranty Download

MrSteam® warrants that its commercial steambath CX series products and accessories (collectively, CX Products) which are installed in the United States or Canada are free from defects in materials and workmanship for a period of one year from the date of MrSteam’s invoice to its purchaser.
MrSteam will repair or replace (at its option) a CX Product if it fails to conform to these limited warranties. All warranty work will be performed without charge when the CX Product is returned to the location designated by MrSteam within the applicable warranty period.

Terms, Conditions, and Exclusions
This limited warranty is non-transferable and applies only to the original purchaser. This limited warranty does not apply to a CX Product which was used as a display product or is sold “as is” or in a damaged condition. This limited warranty does not apply to repairs or replacement necessitated by any cause beyond the control of MrSteam including, but not limited to any malfunction, defect or failure caused by or resulting from unauthorized
service or parts, improper maintenance and/or problems arising from local water conditions, operation contrary to furnished instructions, damages occurring during shipment, transit, storage or handling, or arising from modification, or repair by any person not authorized by MrSteam, abuse, misuse, neglect, accident, incorrect power line voltage, fire, flood, or other Acts of God.

CX PRODUCTS MUST BE INSTALLED, OPERATED, AND MAINTAINED IN ACCORDANCE WITH MRSTEAM’S INSTRUCTIONS. FAILURE TO FOLLOW THE INSTALLATION, OPERATION, OR MAINTENANCE PROCEDURES OR USE OF UNAUTHORIZED PARTS AUTOMATICALLY VOIDS THIS WARRANTY.

Users are responsible for the suitability of the CX Products for their application. This warranty does not apply to expendable parts which are required to
be replaced in the ordinary course of operation. This limited warranty does not cover any costs incurred for the removal or re-installation of the CX Product. To ensure expedient processing of any warranty claim, a Return Materials Authorization (RMA) is to be obtained by the original purchaser and prominently shown on any corre-spondence or packages. Returns made without a RMA will not be processed.

To obtain a RMA, call 1-800-76 STEAM (East Coast) or 1-800-72 STEAM (West Coast). The original purchaser is responsible for all shipping charges. All CX Products returned pursuant to a RMA must be shipped freight prepaid. Proof of purchase (original sales receipt) identifying the model number and serial number must accompany all warranty claims. This limited warranty does not cover any labor or other costs incurred at any location other than that designated by MrSteam in its RMA and in no event shall MrSteam be liable for costs incurred in connection with the removal of the CX Product or any component in order to return it to MrSteam or any labor or other costs incurred in connection with the re-installation of the CX Product or the installation of a replacement component. Returns will be examined by MrSteam. If in the judgment of MrSteam the defect in workmanship or materials is not subject to the limited warranty, any returns or repairs thereafter made shall be at the request and expense of the original purchaser.

THE FOREGOING IS IN LIEU OF ALL EXPRESS OR IMPLIED WARRANTIES AND MR.STEAM DOES NOT ASSUME OR AUTHORIZE ANY PARTY TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN AND SPECIFICALLY LIABILITY FOR ANY BREACH OF ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PURPOSE IS EXCLUDED. THE
DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW NOTWITHSTANDING THE PREVIOUS SENTENCE (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) SHALL IN NO EVENT EXCEED ONE YEAR. IN NO EVENT SHALL MRSTEAM BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF ANY CX PRODUCT; OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES; SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
