Amerec IT2-30-48 Dual Room Steam Thermostat Kit | 12-24kW

Amerec IT2-30-48 Dual Room Steam Thermostat Control Kit

The Amerec IT2-30-48 is a complete dual-room thermostat control system engineered specifically for AI series steam boilers requiring two-room installations. This comprehensive kit provides precision temperature control for residential and commercial steam room applications with power requirements between 12-24kW at 208V, 240V, or 480V.

Complete Kit Components

Each IT2-30-48 package includes everything needed for a dual-room steam generator installation: two IT1 thermostat controls for independent room management, two temperature sensors with connection cables, one steam solenoid valve assembly for reliable steam flow regulation, and four 3/4-inch chrome steam heads for even steam distribution.

Thermostat Control Features

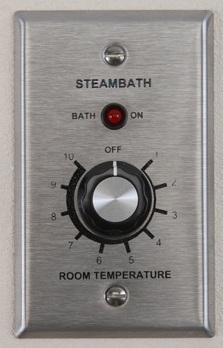

The IT1 thermostat controls offer adjustable room temperature settings ranging from 90°F to 120°F, allowing users to customize their steam experience. Each unit operates on 5V DC power and features a mode indicator light for clear status visibility. When the I60 switch is not installed, an off position is available for complete system shutdown capability.

Technical Specifications

• Adjustable room temperature, 90º-120º Fahrenheit
• Mode indicator light
• Off position available when I60 switch is not installed
• 5V DC operation

Compatibility and Applications

Designed exclusively for use with Amerec AI series boilers, the IT2-30-48 supports 12-24kW models across three voltage configurations: 208V, 240V, and 480V. This versatility makes it suitable for various installation environments, from residential dual-room steam setups to commercial spa facilities requiring independent temperature control for separate steam rooms.

Installation and Control

The dual thermostat configuration allows independent temperature management for two separate steam rooms connected to a single AI series boiler. The included sensors provide accurate temperature readings, while the steam solenoid valve assembly ensures precise steam delivery control. The four chrome steam heads distribute steam evenly throughout both rooms for consistent heating performance.
