* For Rooms up to 1800Â cubic feet

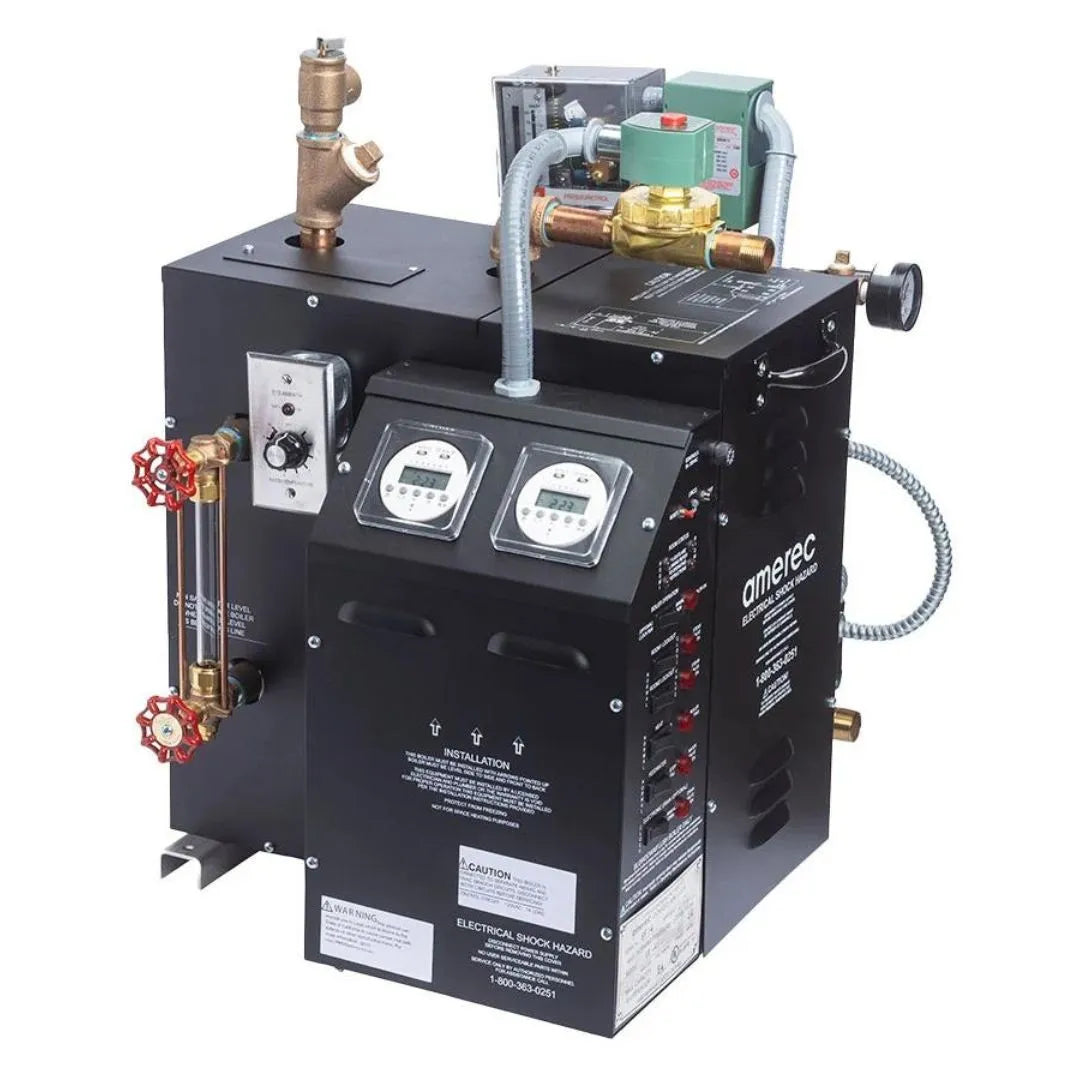

Unleash the power of the Amerec AI-36 Commercial Steam Generator, engineered to handle the demands of even the most active steam rooms. With a robust 36-kilowatt power rating, this versatile unit seamlessly supports two expansive steam rooms, each up to 1,800 adjusted cubic feet (ACF). Whether you operate a luxury spa or a high-volume gym, the AI-36 ensures a plush, steady steam experience every time.
Step into a world of innovation and safety with the Amerec AI-36. Featuring an ASME-certified pressure vessel, this generator is designed for instant steam production. Trust its temperature safety system to maintain optimal conditions, while diagnostic indicator lights and a low water cut-off system with manual reset provide peace of mind. A convenient water level sight glass makes monitoring simple, ensuring every session is flawless from start to finish.
Say goodbye to downtime and costly service interruptions. The AI-36’s high-efficiency design and minimal maintenance requirements ensure reliable, continuous operation, crucial for any commercial setting. The durable all-steel exterior, complemented by stainless-steel feet, staves off corrosion, affirming years of dependable service. Plus, each unit is UL and cUL listed and assembled following rigorous ASME guidelines for unmatched quality and safety.
Model | AI-12 |
---|---|
Shipping Weight | 125 lbs |
Minimum Adjusted Cubic Feet | 301 |
Maximum Adjusted Cubic Feet | 550 |
Kilowatt Rating | 12.0 KW |
Electrical Specifications | Electrical Chart |
Water Supply Connection | 1/2" NPT |
Generator Steam Line Connection | 3/4" NPT |
Steam Head Connection | 3/4" NPT |
Drain Connection | 3/4" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve | 15 PSIG |
Control "Rough In" Cut Out | 2-1/8" x 3-1/4" |
Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
Control Sensor "Rough In" Cut Out | 7/8" Diameter |
Generator Control Connection | 3 Position Terminal Block |
Generator Control Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
Width | 17-1/2" |
Depth | 20-3/4" |
Height | 23-1/4" |
The Amerec IT1 thermostat was designed for use with all AI series boilers requiring 1 room installation. This kit includes thermostat control, sensor, cables, and (2) 3/4" Chrome steam heads.
Adjustable room temperature, 90º-124º degrees Fahrenheit
Boiler or remote mounting capability
Mode indicator light
Off position available when I60 switch is not installed
5V DC operation
Selecting this option will prevent the need to turn the boiler on and off each day. One D24/7 per AI boiler. Additionally, this timer can be used for the optional auto drain system.
7-day programmable on/off time settings (2-hour increments)
120V AC operation
Boiler mounting
Removable protective shield
The Amerec IT2 thermostat was designed for use with AI series boilers requiring 2 room installation. This kit includes (2) IT1 thermostat controls, (2) sensors, cables, (1) steam solenoid valve assembly, and (4) 3/4" Chrome steam heads. For use with 30-48kW 208V, 240V and 480V models.
Adjustable room temperature, 90º-120º Fahrenheit
Mode indicator light
Off position available when I60 switch is not installed
5V DC operation
The Amerec ADI-D automatic drain is the first step in creating an effective preventative maintenance program. Optional on all AI boilers, this electrically operated drain valve with Digital Run Clock allows for automatic routine boiler draining. As water is changed to steam, solids are left behind eventually interfering with the water-level sensing controls and heating elements. One Amerec ADI-D automatic drain system per boiler.
Automatically drains water
Effective preventative maintenance program
Includes digital run clock
The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
  Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
 Our goal is to ensure your project success.
Amerec only accepts returns of new and uninstalled items within 30 days of purchase. Please contact support@biohackerdirect.com to begin the returns process. Before sending anything back, please email Customer Service to obtain a Return Authorization (RA) number. If the return is required due to damage, please include pictures, and whether the shipping damage was noted upon signing for the delivery.
If you simply wants to return the product, you are not charged a set restocking fee for returns. We strongly recommend that items are shipped back to the return address insured using the same method it was shipped out, Ground or LTL. Once the product comes back, it is inspected for damage. If there is no damage, you will be issued a credit for the full amount that you paid, less any required new boxing fees ~$20-$50 depending on the product. If the product is damaged, you will be notified to issue a claim with your shipper.
Amerec warrants that Amerec Steam Boilers and Temperature Controls (warranted products) are free of manufacturing defects both as to workmanship and material and will replace or repair defective parts or equipment for the period of time and in accordance with the conditions set forth below:
1. Applicability: This warranty applies when the warranted product (a) is installed in accordance with installation instructions provided, (b) is properly installed and reasonably maintained, and (c) has not been subjected to damage, misuse, or abuse.
2. Registration: This warranty becomes valid only after the Limited Warranty Registration form, provided with this warranty, is completely filled out and signed by the original purchaser and sent to Amerec within sixty (60) days from the date of original installation. This warranty is non-transferable and shall extend only to the original installation.
3. Duration of Warranty: Amerec or its authorized representative will provide parts to replace those with manufacturing or workmanship defects for a period of one (1) year from the date of original installation.
4. Return Authorization: A return authorization number assigned by an Amerec representative must accompany all returned parts. Parts which are returned without a return authorization number may not be repaired or replaced.
5. Procedure: Requests for repair or replacement, a return authorization number, or warranty information should be directed to AMEREC by calling toll-free 1-800-363-0251, by email to support@amerec.com or by writing to AMEREC, 575 Cokato St. E, Cokato, MN 55321. Defective product or parts returned for repair or replacements must be shipped to Amerec at below address. Shipping costs for return of replacement product or parts to the purchaser will be at the expense of the purchaser.
6. Limitations and Remedies: There are no warranties which extend beyond the descriptions of the face hereof. This limited warranty is in lieu of all warranties, expressed or implied, and of all other obligations or liabilities on the part of Amerec. There shall be no implied warranty of merchantability. Amerec neither assumes nor authorizes any person top assume for it any other obligation or liability in connection with the sale of its products.
Damages for breach of this warranty shall not exceed the lesser of the cost of repair or replacement shall be the exclusive remedy to the purchaser.
Under no circumstances shall Amerec be liable by virtue of this warranty or otherwise for any special, indirect, secondary, incidental, or consequential damage of any nature to any person or property arising directly or indirectly out of the use of this or inability to use a warranted product.
Some states do not allow limitations on how long a implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
7. Disputes: Any lawsuit alleging breach of this limited warranty shall be commenced within one (1) year from the date of breach. In addition, any such lawsuit may be commenced only in Wright County, Minnesota.
