650 CU FT 3-Room Steam Generator | ThermaSol Day Spa Package
- $6,545.00
$9,350.00- $6,545.00
- Unit price
- per
ThermaSol Day Spa Series — Commercial
Three expansive suites.
Maximum commercial output.

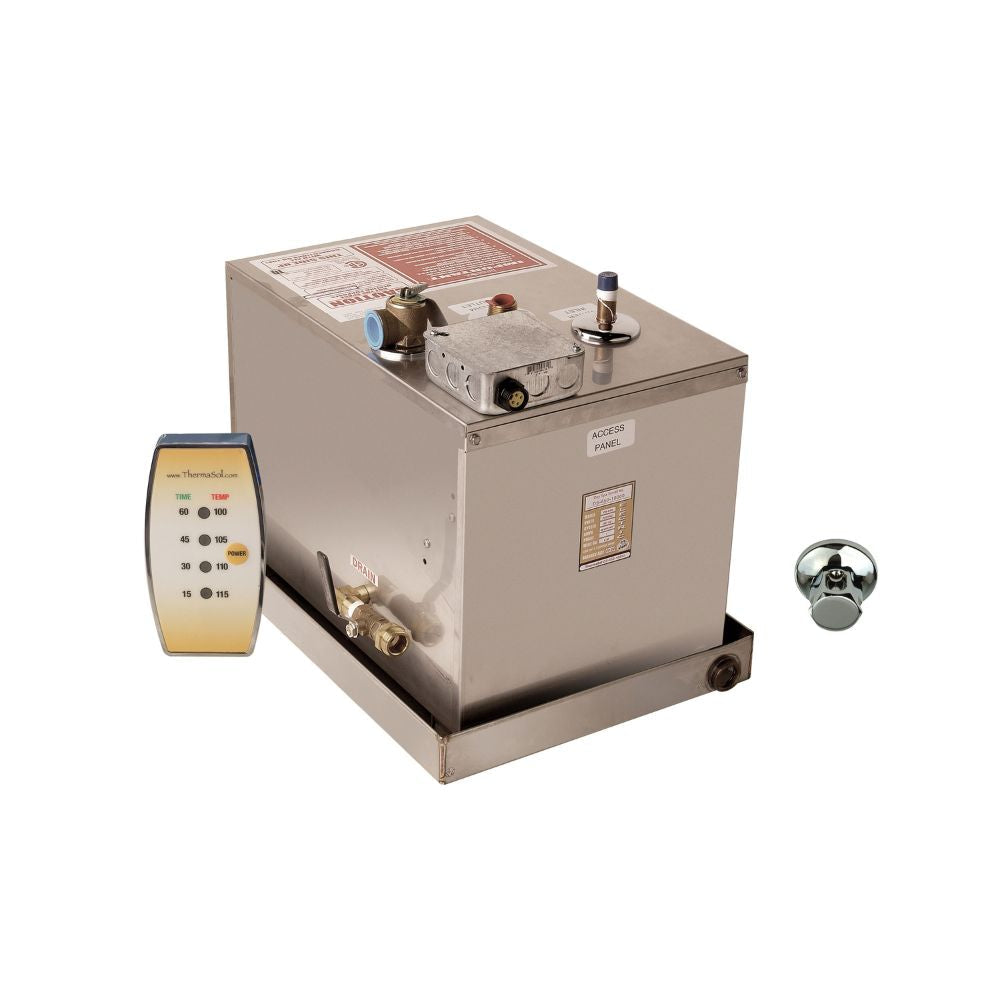

The 650 Cubic Feet 3-Room Steam Generator from the ThermaSol Day Spa Series is designed to power three large steam rooms up to 650 Cubic Feet each.
With a 20.0 kW heating capacity, this configuration is engineered for large-scale commercial wellness facilities where sustained steam volume and stable atmospheric conditions are critical throughout extended operating hours.
20kWPower Output
3Rooms Served
650Cu. Ft. Per Room
5-YearCommercial Warranty
Maximum-output steam for three expansive suites in premium resort and destination spa facilities.
Core Technologies
01
Engineered for Premium Commercial Installations
Rapid Heat-Up at Large Scale
Well suited for resort spa complexes, luxury hotel wellness centres, high-capacity destination spas, and architect-designed steam facilities — the 20.0 kW output supports rapid heat-up times and dependable steam saturation across three large cubic footage rooms.
- Resort spa complexes
- Luxury hotel wellness centres
- High-capacity destination spas
- Architect-designed steam facilities
02
Dual Breaker Load Distribution
Safe, Stable High-Energy Operation
The 20.0 kW configuration operates on dual independent breakers to safely manage higher energy demand, enhancing electrical stability and supporting continuous multi-room operation without strain.
03
Industrial-Grade Stainless Steel Build
Built for Extended Daily Use
The stainless steel housing and split-tank system reduce wear on heating elements while improving operational efficiency — designed to withstand sustained use across three large commercial steam rooms day after day.
04
PowerFlush™ Integrated Cleaning
Performance Protection at High Output
Regular use of the PowerFlush™ system helps maintain optimal heating performance by breaking down sediment buildup inside the tank — especially important in higher-output configurations servicing three large rooms.
The Day Spa Series Difference
Peak output.
Three-room confidence.
Backed by ThermaSol's 5-Year Commercial Warranty, the Day Spa 650 3-Room delivers long-term operational confidence for resort spas, luxury hotel developments, and large-scale destination wellness centres.
Designed, engineered, and built in the U.S.A.
See It In Action
The Day Spa 650 3-Room in action.
Watch how the ThermaSol Day Spa Series delivers maximum-capacity steam across three expansive suites with dual independent electrical control and sustained high-output performance.
SmartSteam™
PowerFlush™
Dual Breakers
3-Room Control
5-Year Warranty
Technical Specifications – DAY SPA 650 – 3 Room
Electrical
| Input Voltage | 208–240 VAC, 1-Phase |
| Kilowatt Rating | 20.0 kW |
| Max Amperage | 46/46 AMPS |
| Breaker Size | 50/50 AMPS (2 independent) |
| Wire Gauge | 8/8 |
| Electrical Connection | IEC 309 |
| Warranty | 5-Year Commercial |
Dimensions & Capacity
| Max Room Size | 650 cu. ft. (per room) |
| Room Configuration | 3 Steam Rooms |
| Width | 18" (45.7 cm) |
| Depth | 22" (55.9 cm) |
| Height | 17" (43.2 cm) |
| Weight | 46 lbs (20.9 kg) |
Plumbing Connections
| Water Inlet | 3/8" Compression |
| Steam Outlet | 3/4" NPT |
| Drain Pan | 3/4" NPT |
| Safety Valve | 3/4" NPT |
Installation Note
Must be installed by a qualified electrician and plumber on dedicated dual circuits. Generator can be located up to 50 feet from the steam rooms. Monthly PowerFlush™ cycles are recommended to maintain peak efficiency in commercial use.
Features
- Industrial grade stainless-steel construction

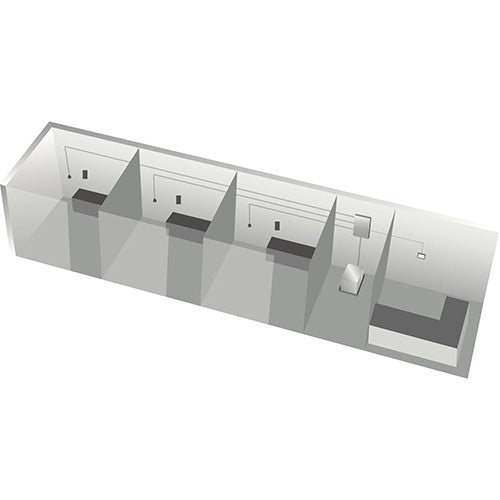

- Steam Distribution System Module delivers steam across 2 to 4 rooms at once
- SmartSteam™ for constant steam at a constant rate
- PowerFlush™ for protecting generator operation and longevity
- Large capacity split tank design for efficient steam production
- Stainless-steel drip pan for easy maintenance
- Temperature sensors built into controller for safety
- Superior heating elements with low watt density for uniform heat distribution
- Steamheads feature aromatherapy reservoirs to disperse essential oils
- Dimensions: 22"L (55.9 cm) × 18"W (45.7 cm) × 17"H (43.2 cm)
- Designed, engineered and built in the U.S.A.
- 5-year no questions asked warranty
What's Included
- Steam Shower Generator
- Polished Chrome Legacy Classic 1/2" Steamhead (2–4)
- Time & Temperature Digital Control (2–4)
- Steam Distribution System Module
- Stainless Steel Drip Pan
- Hardware Kit
- 5-Year No Questions Asked Warranty
