650 CU FT 2-Room Steam Generator | ThermaSol Day Spa Package
- $5,915.00
$8,450.00- $5,915.00
- Unit price
- per
ThermaSol Day Spa Series — Commercial
Maximum capacity.
Luxury-grade performance.
The 650 Cubic Feet 2-Room Steam Generator represents the highest output configuration within the ThermaSol Day Spa commercial range.
Delivering 20.0 kW of heating power, this system is engineered for large-scale spa rooms up to 650 cubic feet each — ideal for luxury wellness facilities and high-end hospitality projects.
Best suited for resort spas, large destination wellness centres, premium hotel developments, and architect-designed commercial steam suites.
20kWPower Output
2Rooms Served
650Cu. Ft. Per Room
5-YearCommercial Warranty
Maximum-capacity steam for resort spas, luxury hotels, and architect-designed wellness suites.
Core Technologies
01
Engineered for Large-Volume Environments
Sustained Output at Scale
Larger steam rooms require sustained output without performance drop. The 20.0 kW rating ensures rapid heat-up times and stable atmospheric conditions even during extended operating hours — giving guests a consistent experience throughout.
02
Dual Breaker High-Load Electrical
Safe, Reliable High-Load Operation
The 650 Cubic Feet model operates on dual independent breakers to manage increased electrical demand safely.
- Stable energy distribution
- Commercial compliance
- Reduced electrical strain
- Reliable continuous operation
03
Stainless Steel Split-Tank Construction
Minimised Wear, Maximum Longevity
The industrial-grade stainless steel housing and split-tank engineering are designed to withstand continuous commercial operation while minimising scale exposure and internal wear — keeping the system performing at its best over years of heavy use.
04
PowerFlush™ Performance Protection
Active Sediment Management
With higher output comes greater mineral exposure. The integrated PowerFlush™ system ensures sediment is actively managed at scale, helping preserve heating efficiency and protecting the long-term investment in your commercial steam installation.
The Day Spa Series Difference
Peak commercial output.
Built to last.
Backed by ThermaSol's 5-year no-questions-asked commercial warranty, the Day Spa 650 delivers long-term operational confidence for the most demanding luxury installations.
Designed, engineered, and built in the U.S.A. for resort spas, premium hotel developments, and architect-specified commercial steam environments.
See It In Action
The Day Spa 650 in action.
Watch how the ThermaSol Day Spa Series delivers maximum-capacity steam performance across two large luxury rooms with stable, independent control.
SmartSteam™
PowerFlush™
Dual Breakers
Split Tank
5-Year Warranty
Technical Specifications – DAY SPA 650
Electrical
| Input Voltage | 208–240 VAC, 1-Phase |
| Kilowatt Rating | 20.0 kW |
| Max Amperage | 46/46 AMPS |
| Breaker Size | 50/50 AMPS (2 independent) |
| Wire Gauge | 8/8 |
| Electrical Connection | IEC 309 |
| Warranty | 5-Year Commercial |
Dimensions & Capacity
| Max Room Size | 650 cu. ft. (per room) |
| Rooms Supported | 2 |
| Width | 18" (45.7 cm) |
| Depth | 22" (55.9 cm) |
| Height | 17" (43.2 cm) |
| Weight | 46 lbs (20.9 kg) |
Plumbing Connections
| Water Inlet | 3/8" Compression |
| Steam Outlet | 3/4" NPT |
| Drain Pan | 3/4" NPT |
| Safety Valve | 3/4" NPT |
Installation Note
Must be installed by a qualified electrician and plumber on dedicated dual circuits. Generator can be located up to 50 feet from the steam rooms. Monthly PowerFlush™ cycles are recommended to maintain peak efficiency in commercial use.
Features
- Industrial grade stainless-steel construction

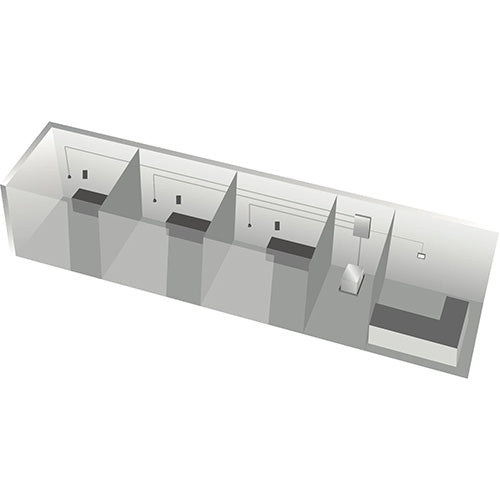

- Steam Distribution System Module delivers steam across 2 to 4 rooms at once
- SmartSteam™ for constant steam at a constant rate
- PowerFlush™ for protecting generator operation and longevity
- Large capacity split tank design for efficient steam production
- Stainless-steel drip pan for easy maintenance
- Temperature sensors built into controller for safety
- Superior heating elements with low watt density for uniform heat distribution
- Steamheads feature aromatherapy reservoirs to disperse essential oils
- Dimensions: 22"L (55.9 cm) × 18"W (45.7 cm) × 17"H (43.2 cm)
- Designed, engineered and built in the U.S.A.
- 5-year no questions asked warranty
What's Included

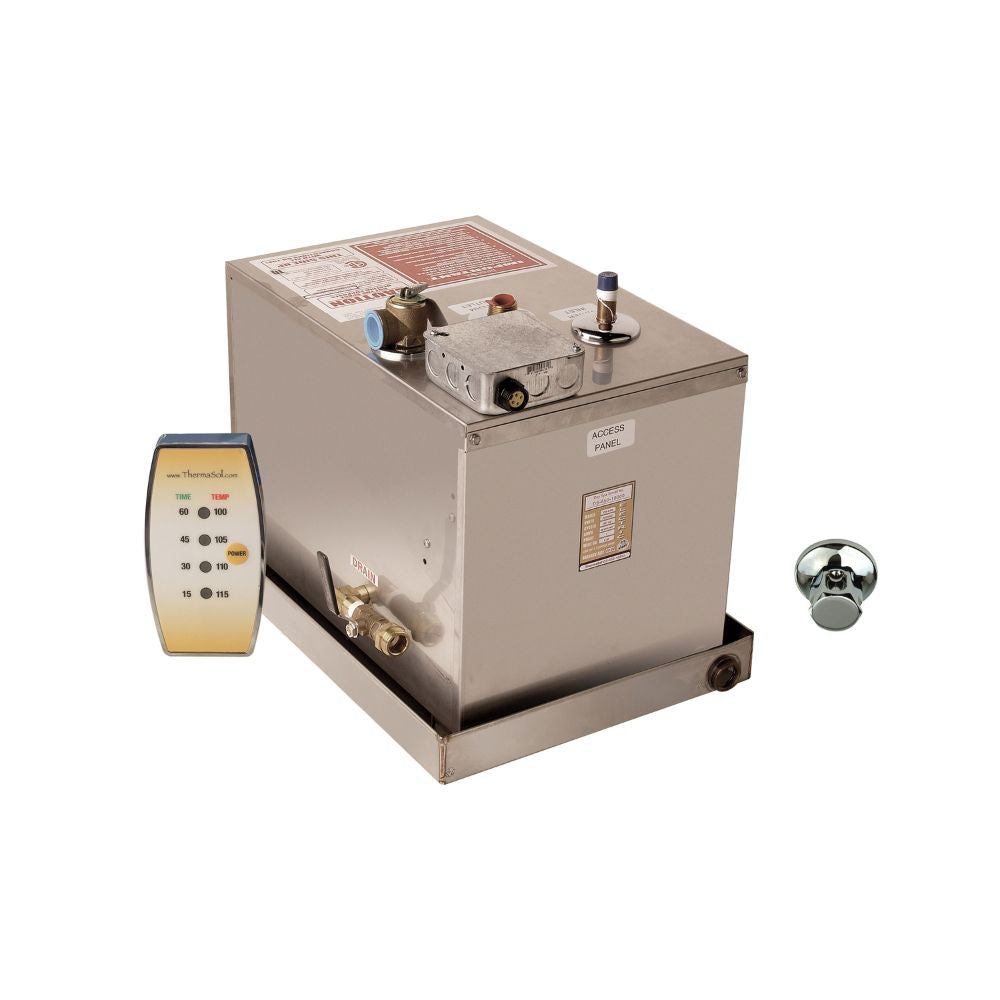

- Steam Shower Generator
- Polished Chrome Legacy Classic 1/2" Steamhead (2–4)
- Time & Temperature Digital Control (2–4)
- Steam Distribution System Module
- Stainless Steel Drip Pan
- Hardware Kit
- 5-Year No Questions Asked Warranty
