400 CU FT 3-Room Steam Generator | ThermaSol Day Spa Package
- $6,510.00
$9,300.00- $6,510.00
- Unit price
- per
ThermaSol Day Spa Series — Commercial
Three large suites.
High-output steam capacity.
The 400 Cubic Feet 3-Room Steam Generator from the ThermaSol Day Spa Series is engineered for professional facilities operating three steam rooms up to 400 Cubic Feet each.
Delivering 16.0 kW of heating power, this configuration is designed for larger spa suites where increased steam volume, faster recovery time, and stable atmospheric control are essential. It is particularly suited to high-traffic wellness centres and hospitality spa floors managing simultaneous usage across multiple treatment rooms.
16kWPower Output
3Rooms Served
400Cu. Ft. Per Room
5-YearCommercial Warranty
High-output steam delivery for three large commercial suites under sustained simultaneous use.
Core Technologies
01
Built for Larger Steam Environments
Consistent Density Across Three Suites
As steam room size increases, maintaining consistent density and temperature requires higher output and stable electrical distribution.
- Simultaneous multi-room operation
- Balanced steam delivery across three suites
- Reliable temperature control under sustained use
- Faster recovery between guest sessions
02
SmartSteam™ Intelligent Output Management
No Spikes. No Drop-offs.
SmartSteam™ technology continuously monitors internal conditions and dynamically adjusts energy output to maintain steady steam levels. In larger cubic footage rooms, this ensures consistent heat saturation without temperature spikes or steam drop-offs.
03
Dual Independent Electrical Configuration
Safe High-Load Distribution
The 16.0 kW system utilises dual independent breakers to safely distribute electrical load, improving installation stability and supporting higher commercial output requirements without overloading a single circuit.
04
PowerFlush™ Sediment Protection
Maintaining Efficiency at Scale
The integrated PowerFlush™ cleaning system helps reduce mineral buildup inside the tank, maintaining heating efficiency and protecting long-term performance in busy commercial settings across three large suites.
The Day Spa Series Difference
Three large suites.
Sustained performance.
Protected by ThermaSol's 5-Year No-Questions-Asked Commercial Warranty, the Day Spa 400 3-Room ensures dependable long-term operation for high-traffic hospitality and wellness facilities.
Designed, engineered, and built in the U.S.A.
See It In Action
The Day Spa 400 3-Room in action.
Watch how the ThermaSol Day Spa Series delivers high-output steam across three large suites with dual independent electrical control and stable simultaneous performance.
SmartSteam™
PowerFlush™
Dual Breakers
3-Room Control
5-Year Warranty
Technical Specifications – DAY SPA 400 – 3 Room
Electrical
| Input Voltage | 208–240 VAC, 1-Phase |
| Kilowatt Rating | 16.0 kW |
| Max Amperage | 37/37 AMPS |
| Breaker Size | 40/40 AMPS (2 independent) |
| Wire Gauge | 8/8 |
| Electrical Connection | IEC 309 |
| Warranty | 5-Year Commercial |
Dimensions & Capacity
| Max Room Size | 400 cu. ft. (per room) |
| Room Configuration | 3 Steam Rooms |
| Width | 18" (45.7 cm) |
| Depth | 22" (55.9 cm) |
| Height | 17" (43.2 cm) |
| Weight | 46 lbs (20.9 kg) |
Plumbing Connections
| Water Inlet | 3/8" Compression |
| Steam Outlet | 3/4" NPT |
| Drain Pan | 3/4" NPT |
| Safety Valve | 3/4" NPT |
Installation Note
Must be installed by a qualified electrician and plumber on dedicated dual circuits. Generator can be located up to 50 feet from the steam rooms. Monthly PowerFlush™ cycles are recommended to maintain peak efficiency in commercial use.
Features
- Industrial grade stainless-steel construction

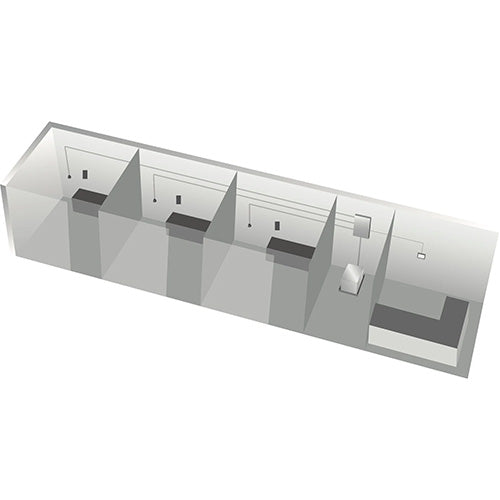

- Steam Distribution System Module delivers steam across 2 to 4 rooms at once
- SmartSteam™ for constant steam at a constant rate
- PowerFlush™ for protecting generator operation and longevity
- Large capacity split tank design for efficient steam production
- Stainless-steel drip pan for easy maintenance
- Temperature sensors built into controller for safety
- Superior heating elements with low watt density for uniform heat distribution
- Steamheads feature aromatherapy reservoirs to disperse essential oils
- Dimensions: 22"L (55.9 cm) × 18"W (45.7 cm) × 17"H (43.2 cm)
- Designed, engineered and built in the U.S.A.
- 5-year no questions asked warranty
What's Included

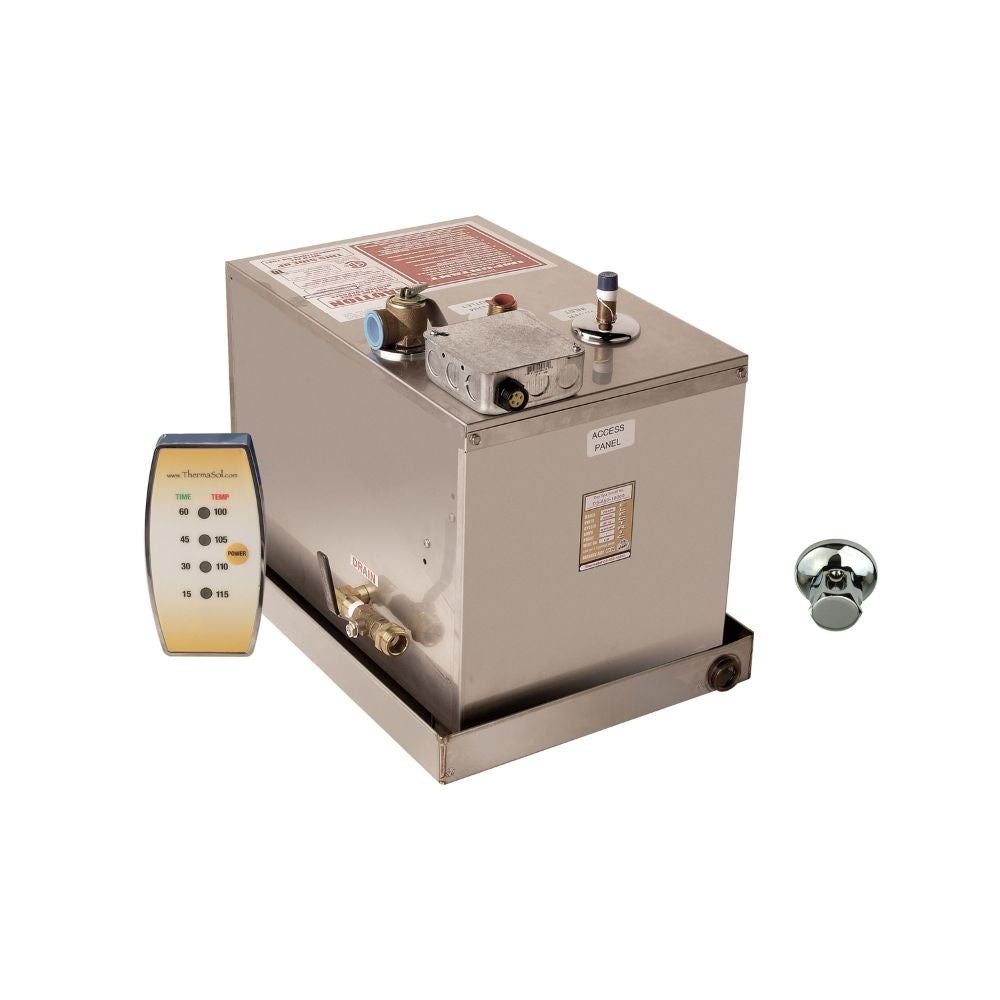

- Steam Shower Generator
- Polished Chrome Legacy Classic 1/2" Steamhead (2–4)
- Time & Temperature Digital Control (2–4)
- Steam Distribution System Module
- Stainless Steel Drip Pan
- Hardware Kit
- 5-Year No Questions Asked Warranty
