ThermaSol PowerPak Series III — Commercial
High-capacity power.
Advanced control.

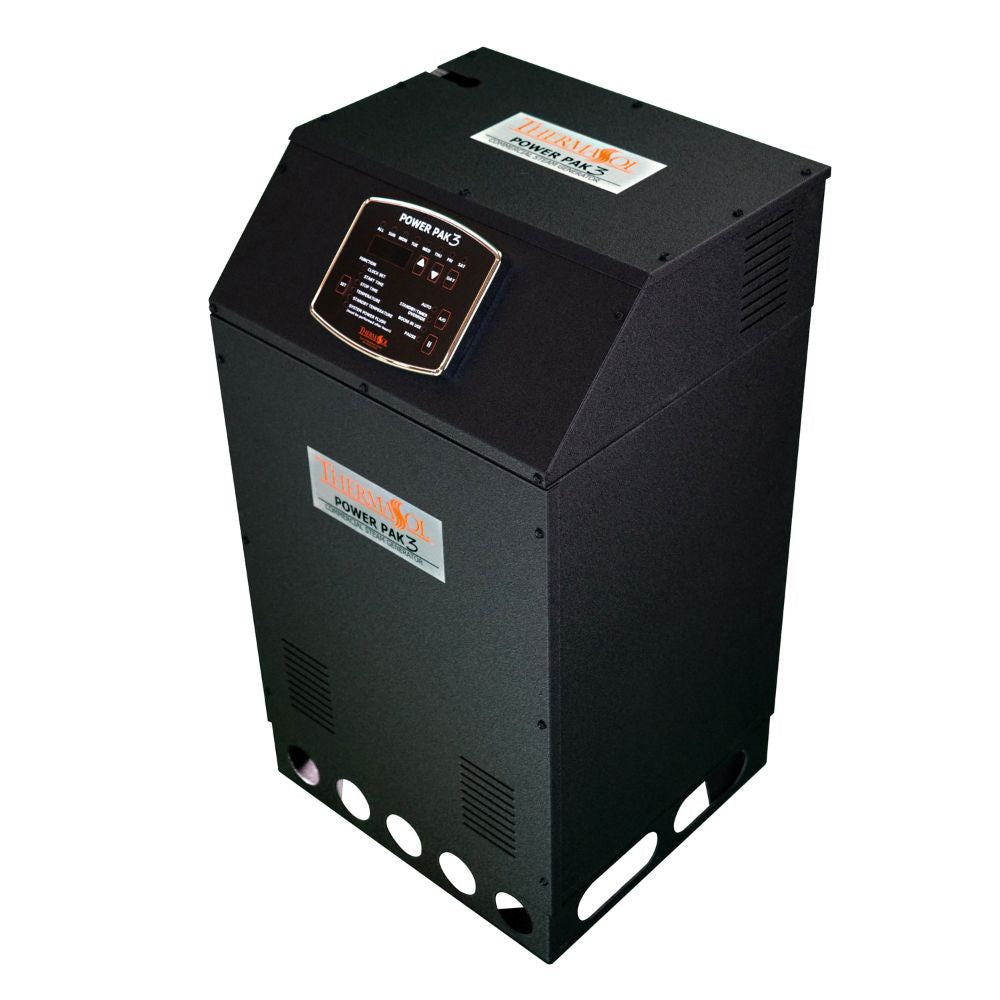

The ThermaSol PowerPak Series III 24kW Commercial Steam Generator delivers powerful, uninterrupted steam production for larger commercial steam rooms. Designed for continuous operation in demanding wellness facilities, this 24kW steam generator combines industrial durability with advanced control technology.
With its 24kW heating capacity, this model is ideal for high-traffic spas, fitness centres, hotels, and health clubs requiring robust steam production throughout the day.
24kWPower Output
50ftInstall Range
7-DayProgrammable
18moParts & Labour
Built for large-scale commercial environments that demand reliability every day.
Core Technologies
01
Commercial-Grade Construction
Industrial Durability
Industrial-grade stainless steel construction with a powder-coated steel enclosure ensures maximum durability under continuous operation. Corrosion-resistant Incoloy heating elements deliver consistent performance and an extended operational lifespan.
02
Split Tank Design
Optimised Efficiency
The split tank design separates water feed and heating functions, optimising steam generation efficiency while reducing wear on internal components — delivering sustained high-capacity output with less mechanical stress.
03
PowerFlush™ Self-Cleaning
Automated Scale Protection
The integrated PowerFlush™ system automatically breaks down sediment build-up within the pressurised inner tank, maintaining peak efficiency and extending unit life. Activated via the digital control system — and uses the steam room's existing drain, so no extra plumbing is required.
04
Programmable Digital Control
Intelligent Operation
- 7-day scheduling capability
- Precise temperature & time customisation
- Diagnostic error code display
- Secure CAN bus communication
- External digital timer for standby energy saving
The PowerPak Series III Difference
Large-scale output.
Built in the U.S.A.
Can be installed up to 50 feet from the steam room, providing layout flexibility for plant rooms and service areas. Front and top access panels allow streamlined maintenance.
Built for large-scale commercial steam rooms requiring high-capacity output, dependable operation, and advanced digital control. Backed by an 18-month parts and labour warranty.
See It In Action
The PowerPak 24kW in action.
Watch how the PowerPak Series III delivers high-capacity commercial steam performance with intelligent programmable control and long-term reliability.
PowerFlush™
CAN Bus
Split Tank
7-Day Control
Made in U.S.A.
Technical Specifications
Both Models
| Water Inlet | 3/8" Compression |
| Steam Outlet | 1" NPT |
| Safety Valve | 3/4" NPT |
| Electrical Connection | Hardwired |
| Weight | 120 lbs (54.4 kg) |
| Width | 18" (45.7 cm) |
| Depth | 19" (48.3 cm) |
| Height | 32" (81.3 cm) |
PP24LR-240
| Input Voltage | 208–240 VAC, 3-Phase |
| Kilowatt Rating | 24.0 kW |
| Max Amperage | 58 AMPS |
| Overcurrent Protection | 70 AMPS |
| Room Size | Greater than 1,000 cu. ft. |
| Warranty | 18-month parts & labour |
PP24LR-480
| Input Voltage | 480 VAC, 3-Phase |
| Kilowatt Rating | 24.0 kW |
| Max Amperage | 29 AMPS |
| Overcurrent Protection | 40 AMPS |
| Room Size | Greater than 1,000 cu. ft. |
| Warranty | 18-month parts & labour |
Installation Note
Must be installed by a qualified electrician and plumber on a dedicated circuit. Monthly PowerFlush™ cycles are recommended to maintain peak efficiency. Uses existing steam room drain line — no additional plumbing required.
Features
- Industrial grade stainless-steel construction
- Fully programmable digital control system
- PowerFlush™ for protecting generator operation and longevity
- Split tank design for efficient steam production
- Incoloy heating elements for superior corrosion protection
- Front and top access for streamlined maintenance
- CAN bus technology for safe and reliable operation
- Powder coated steel enclosure
- Dimensions: 19"L (48.3 cm) × 18"W (45.7 cm) × 32"H (81.3 cm)
- Kit components come packaged together for an all-in-one steam system
- Designed, engineered and built in the U.S.A.
- 18-month parts and labor warranty
What's Included
- Steam Shower Generator with Built-in Control

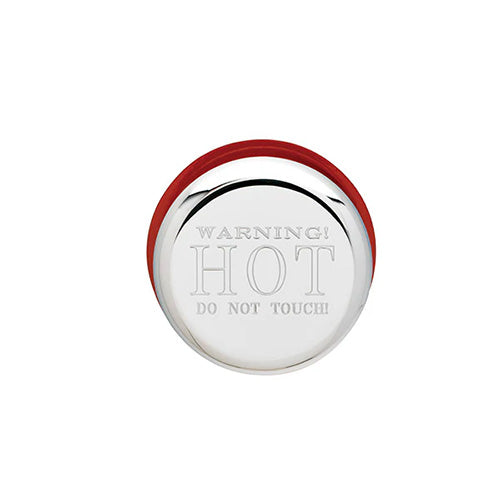

- Polished Chrome Steamhead

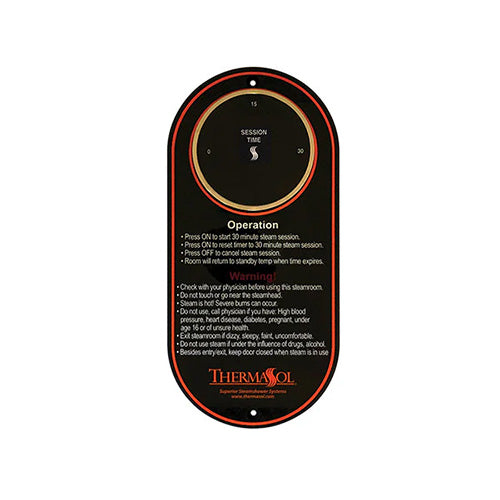

- Digital Timer and M8 Cable
- Temperature Sensor and 50' Lead Wire
- 18-Month Parts and Labor Warranty
